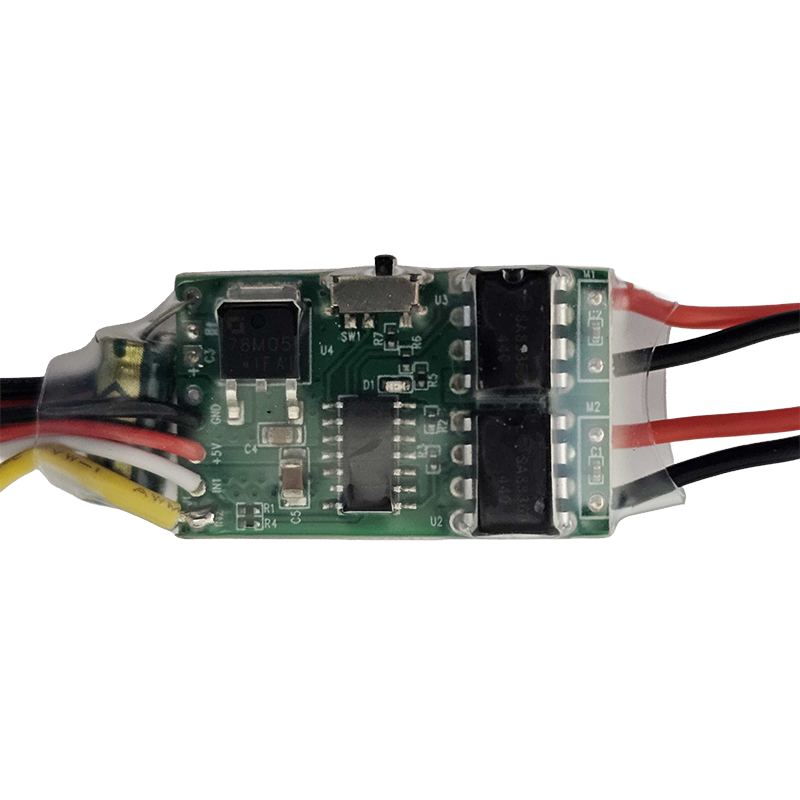

Dual speed controller for DC motors 5A

Speed controller capable of controlling two DC motors simultaneously. It also includes a 5V voltage regulator suitable for powering other electronics.

Ships within 1–2 days after paymentPickup in Pilsen freeShipping & payment

Building a combat robot? Pick a type and we’ll make sure no part is missing.

Robot builder →

Categories: Speed controllers

Description

Specifications:
Voltage: 6 – 14 V (2-3S LiPo)
Pround: 5 A for each motor (7 A short-term surge)
Dimensions: 45 x 21 x 6.5 mm (including capacitor)
Weight: 12 g (with cable)
BEC: 5V 1.5A (not suitable for direct servo power supply)
Cable length: > 10 cm
Mixing mode – allows you to control two motors at the same time using a signal from only one channel (it is more practical to set the mixing directly in the radio transmitter)
Signal loss protection (if the signal is interrupted, the motors stop moving)
Overheating protection (130 °C)
Power failure protection (if the voltage drops below 4V)
Overcurrent protection (but repeated overcurrent loads can cause permanent damage)

Additional information

Weight class	Antweight
