Dual speed controler for DC motors 3.6A
Our new speed controller from Flightless Bird Robotics specially designed for combat robots. Compact size, large areas for soldering cables, integrated 5V voltage regulator, bright LED, you can find all this in this dual-channel controller for brushed motors with a maximum current of 3.6 A.
Building a combat robot? Pick a type and we’ll make sure no part is missing.
Description

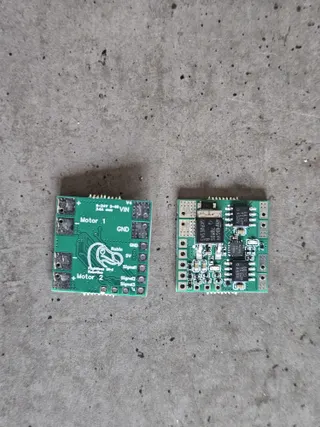

This ESC is designed for 150g Ant weight combat robots to drive N20 and N10 brushed motors. It takes standard RC PWM signals as inputs and supports internal mixing and overhead driving. The ESC is designed to be used with 2-6S, and a maximum current of 3.6A per channel. The ESC has internal current limiting and thermal shutdown. The internal BEC can supply up to 100mA for a receiver. An external BEC should be used for voltages over 4S(16.8V). The PCB without the panels is 22x22mm and weighs 2.3g.
Safety and manufacturer
- Responsible person in the EU
- Ing. et Ing. Michal Matějka
Libušínská 227/17, 326 00 Plzeň - Božkov
info@flsbattlebots.cz - Product identification
- Dual speed controler for DC motors 3.6A
